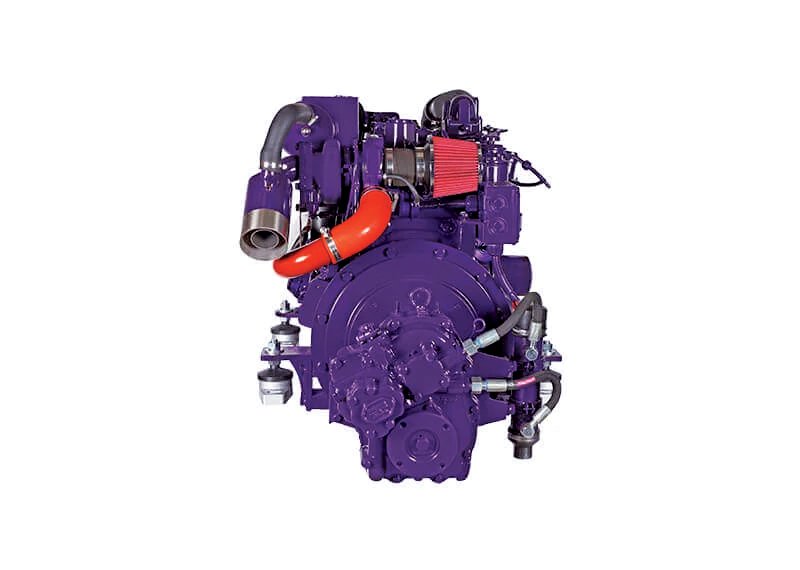

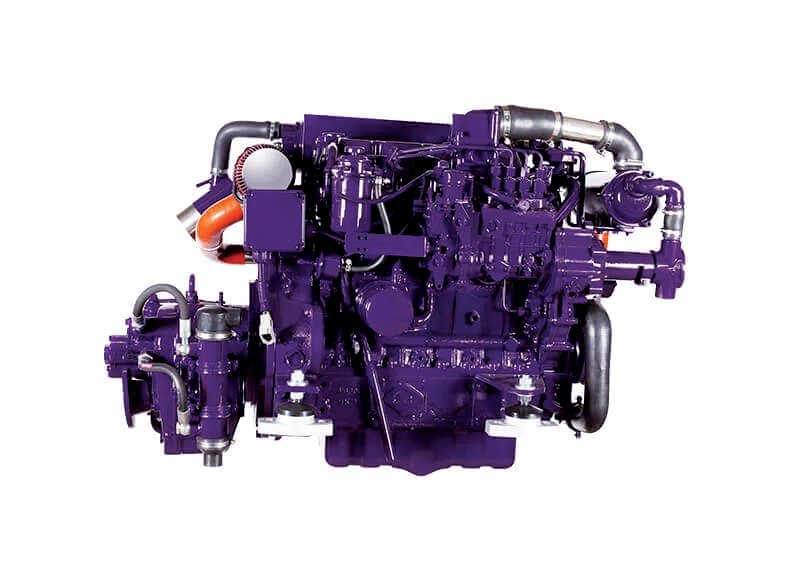

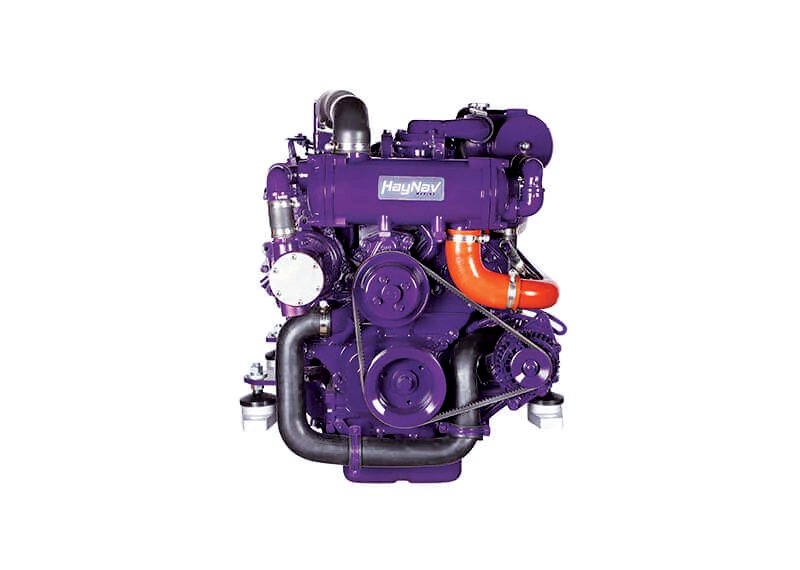

HayNav Marine HM4.130 engine is based on reliable and powerful 130 HP Kubota marine engine. This is a four-cylinders Intercooler Turbo diesel engine with 3,769 liters of displacement.
This marine diesel engine is seawater resistant, runs quietly and serves an efficient usage. It is a balanced engine with vibration-free rotation and complies with the European regulations for Recreational Craft Directive (RCD 2).
Supplied as standard with heat exchanger, oil suction pump, flexible engine mounts, damper plate, outdoor water pump, instrument panel type SEV and 4 meter connection cables (excl. gearbox).
Download: Declaration of Conformity.
| Base Engine | Kubota V3800 T |
|---|---|
| Power | 130 HP – 2600 RPM |
| Displacement | 3,769 LT |
| Cylinders | 4 Inline |
| Torque | 453,6 NM @ 1600 RPM |
| Exhaust Diameter | 90 mm |
| Water Intake | 32 mm |
| Timing | Gear Driven |
| Aspiration | Turbo + Intercooler |
| Cooling System | Indirect with Heat Exchanger |
| Fuel Injection | Mechanical |
| Electric Protection | 10 A Circuit Braker + Relay |
| Electric System | 12 V |
| Stop Solenoid | Energized to Stop + Mechanical |
| Oil Change Pump | Separate Pump |
| Weight | 353 kg |
| Emission | 2013/53/EU RCD 2 |
