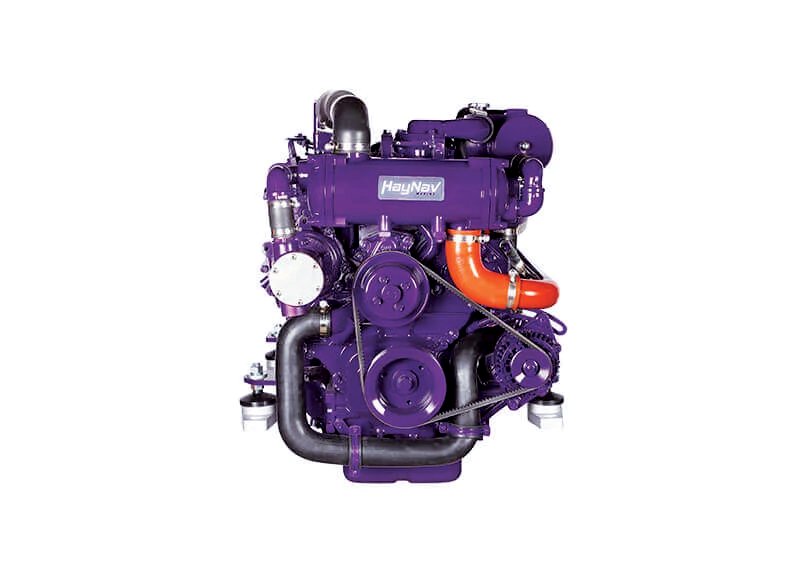

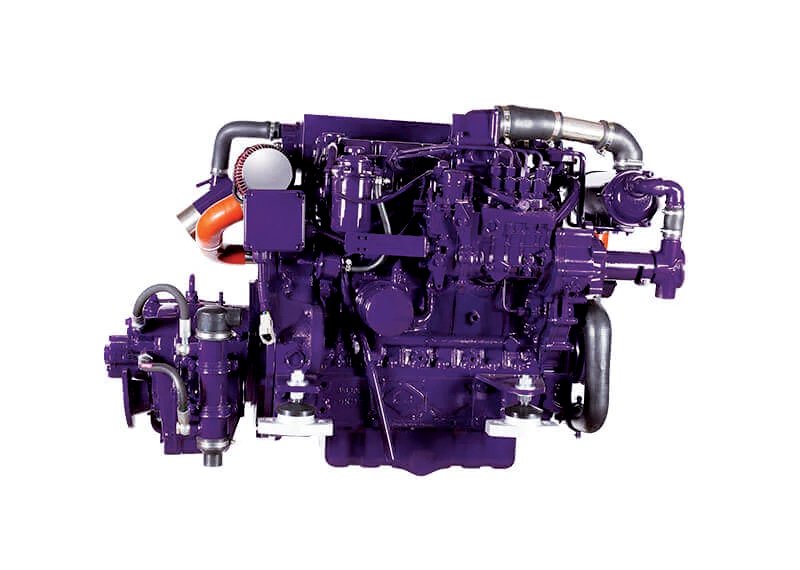

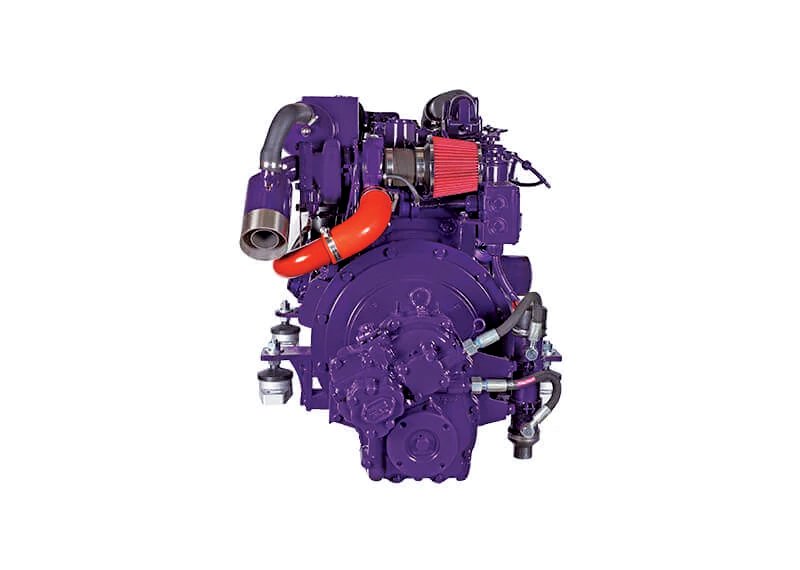

HayNav Marine HM4.100

HayNav Marine HM4.100 engine is based on KUBOTA marine diesel engine. This 4 cylinders with 3,769 liters of displacement, with a turbocharger engine offers numerous advantages and can be trusted as high quality and suitable for many industrial applications. The marine diesel engine is seawater resistant, runs quietly and serves an efficient usage.

About HayNav Marine HM4.100

Supplied as standard with heat exchanger, oil suction pump, flexible motor supports, damper plate, outdoor water pump, connection cables and instrument panel type SEV.

Download: Declaration of Conformity.

HayNav Marine HM4.100 engine drawing

Base Engine

Kubota V3800 T

Power

100 HP – 2600 RPM

Displacement

3,769 LT

Cylinders

4 cylinders

Torque

453,6 NM @ 1600 RPM

Exhaust Diameter

90 mm

Water Intake

32 mm

Timing

Gear Driven

Aspiration

Turbo

Cooling System

Indirect with Heat Exchanger

Fuel Injection

Mechanical

Electric Protection

10 A Circuit Braker + Relay

Electric System

12 V

Stop Solenoid

Energized to Stop + Mechanical

Oil Change Pump

Separate Pump

Weight

353 kg

Emission

2013/53/EU RCD 2
