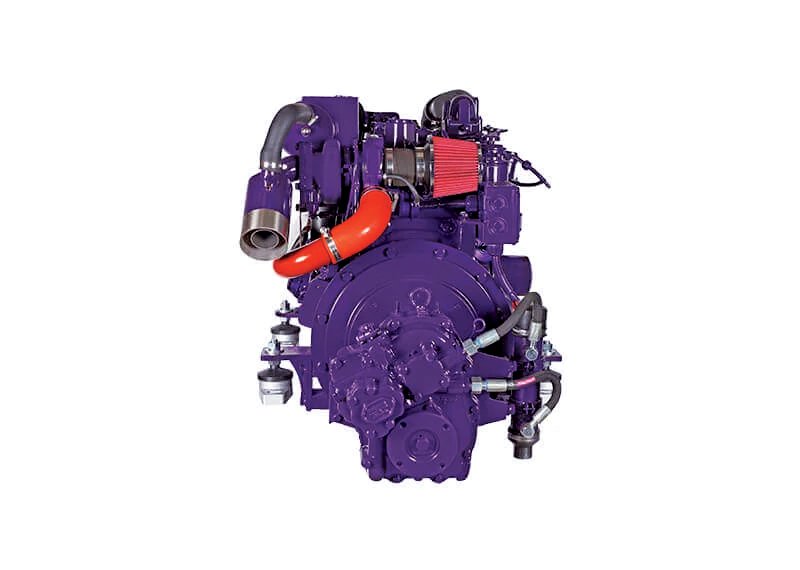

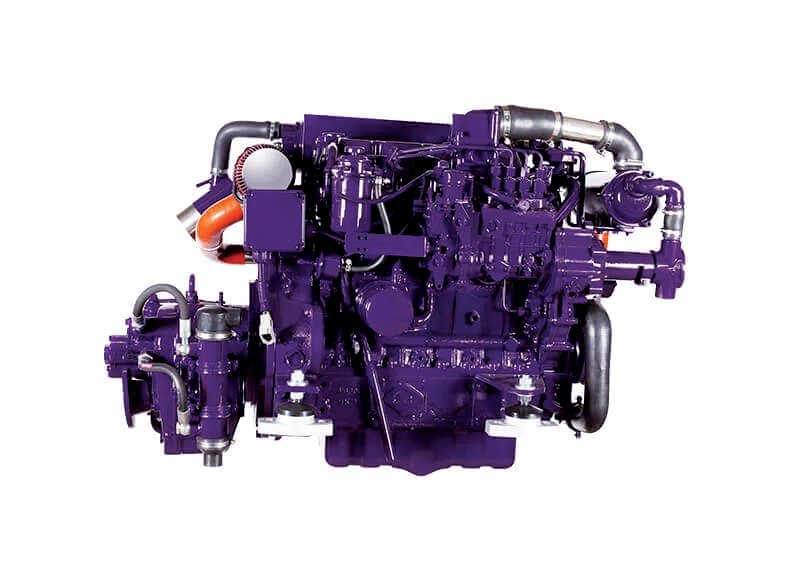

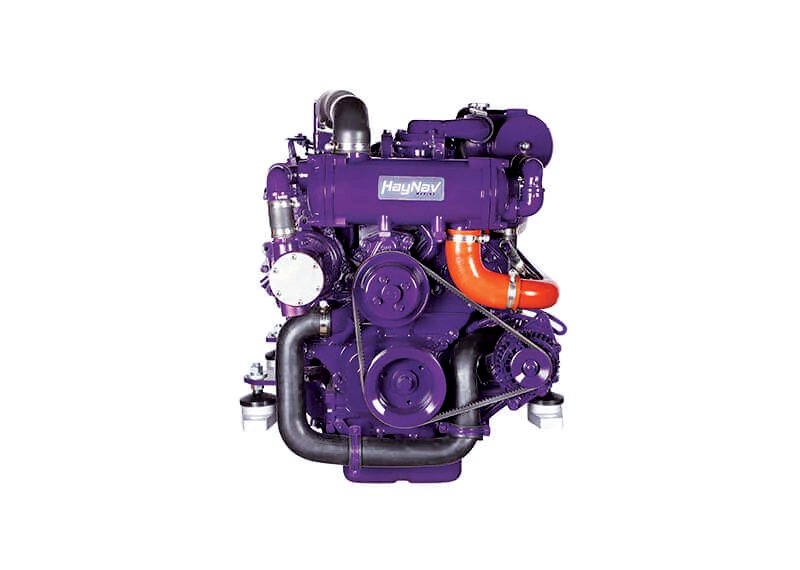

HayNav Marine HM4.130

HayNav Marine HM4.130 engine is based on reliable and powerful 130 HP Kubota marine engine. This is a four-cylinders Intercooler Turbo diesel engine with 3,769 liters of displacement.

About HayNav Marine HM4.130

This marine diesel engine is seawater resistant, runs quietly and serves an efficient usage. It is a balanced engine with vibration-free rotation and complies with the European regulations for Recreational Craft Directive (RCD 2).

Supplied as standard with heat exchanger, oil suction pump, flexible engine mounts, damper plate, outdoor water pump,  instrument panel type SEV and 4 meter connection cables (excl. gearbox).

Download: Declaration of Conformity.

HayNav Marine HM4.130 engine drawing

Base Engine

Kubota V3800 T


130 HP – 2600 RPM


3,769 LT


4 Inline


453,6 NM @ 1600 RPM

Exhaust Diameter

90 mm

Water Intake

32 mm


Gear Driven


Turbo + Intercooler

Cooling System

Indirect with Heat Exchanger

Fuel Injection


Electric Protection

10 A Circuit Braker + Relay

Electric System

12 V

Stop Solenoid

Energized to Stop + Mechanical

Oil Change Pump

Separate Pump


353 kg


2013/53/EU RCD 2
